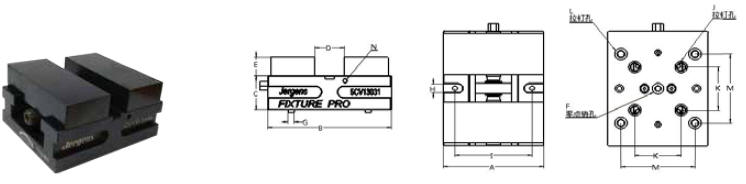

130MM 自定心虎钳 |
|
虎钳可以通过在基础件号后增加以下后缀选配可替换的卡爪:
|
|
|
|
 |
|
件号 |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
H |
I (mm) |
J (件号) |
K (mm) |
L (件号) |
M (mm) |
包含 拉钉 |
N |
重量 ((kg)) |
5CV13031-S |
130 |
160 |
47 |
0-150 |
26 |
K10 |
12 |
12mm |
100 |
5QP020 |
60 |
QL-200805 |
96 |
否 |
M6*1 |
7.4 |
5CV13031-IN |
130 |
160 |
47 |
0-150 |
26 |
K10 |
12 |
12mm |
100 |
5QP020 |
60 |
QL-200805 |
96 |
否 |
M6*1 |
7.4 |
5CV13031-H |
130 |
160 |
47 |
0-150 |
26 |
K10 |
12 |
12mm |
100 |
5QP020 |
60 |
QL-200805 |
96 |
否 |
M6*1 |
7.4 |
5CV13031-D |
130 |
160 |
47 |
0-50 |
26 |
K10 |
12 |
12mm |
100 |
5QP020 |
60 |
QL-200805 |
96 |
否 |
M6*1 |
7.7 |
5CV13031-A |
130 |
160 |
47 |
0-150 |
26 |
K10 |
12 |
12mm |
100 |
5QP020 |
60 |
QL-200805 |
96 |
否 |
M6*1 |
6.8 |
|
|
|
|
|
|
卡爪选项 |
|
- 快换卡爪,无需工具
- 可反向安装
- 下拉设计,最小化卡爪上抬
|
 |
|
|
类型 |
描述 |
适用于 |
件号 |
 |
钢制软爪 |
75mm 130mm |
5CV75-SSJ 5CV130-SSJ |
 |
齿面硬爪 |
75mm 130mm |
5CV75-INSJ 5CV130-INSJ |
 |
光面硬爪 |
75mm 130mm |
5CV75-HSJ 5CV130-HSJ |
 |
铝制软爪 |
75mm 130mm |
5CV75-ASJ 5CV130-ASJ |
|
|
|
|
|
|
|
|
|
|
|
