气动钻 & 气动剪 |
| |
|
| |
|
| |

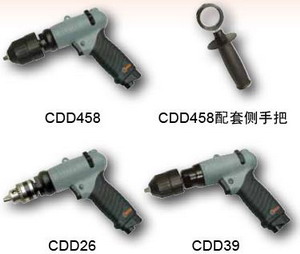

| 气动钻-可换向枪柄式 |
| 件号 |
夹头尺寸 |
软连接
最大扭矩 |
空载转速 |
长度 |
高度 |
直径 |
重量 |
最小气管孔
内径 |
| mm |
In |
Nm |
Lbf-ft |
RPM |
mm |
In |
mm |
In |
mm |
In |
kg |
Lbs |
In |
| CDD26 |
6 |
1/4 |
3.5 |
2.6 |
2900 |
140 |
5.5 |
142 |
5.6 |
36 |
1.4 |
0.58 |
1.27 |
1/4 |
| CDD39 |
10 |
3/8 |
5.0 |
3.7 |
1600 |
140 |
5.5 |
142 |
5.6 |
36 |
1.4 |
0.58 |
1.27 |
1/4 |
| CDD48 |
10 |
3/8 |
7.0 |
5.0 |
1700 |
159 |
6.3 |
154 |
6.1 |
45 |
1.8 |
0.92 |
2.03 |
3/8 |
| CDD58 |
10 |
3/8 |
13.0 |
9.6 |
750 |
159 |
6.3 |
154 |
6.1 |
45 |
1.8 |
0.92 |
2.03 |
3/8 |
| CDD458 |
13 |
1/2 |
13.0 |
9.6 |
750 |
159 |
6.3 |
154 |
6.1 |
45 |
1.8 |
0.92 |
2.03 |
3/8 |
|
| |
|
| |

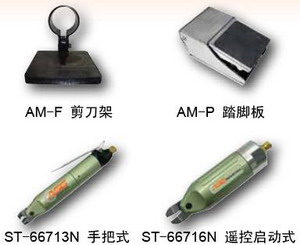

| 气动剪-手把式/遥控启动式 |
| 件号 |
裁减能力
直径 |
手柄直径 |
气压 |
长度 |
重量 |
可选钳头 |
| 铜 |
钢 |
塑料 |
mm |
In |
kg/cm2 |
PSI |
mm |
In |
kg |
Lbs |
| mm |
In |
mm |
In |
mm |
In |
ST-66711N
手把启动 |
2.6 |
0.10 |
2 |
0.08 |
5 |
0.20 |
45 |
1.77 |
140 |
1990 |
170 |
6.7 |
0.34 |
.75 |
B-FD-10, B-CLI-10, B-CL-20,
B-A10, 和B-R10到B-R40 |
ST-66712N
手把启动 |
2.6 |
0.10 |
2 |
0.20 |
5 |
0.20 |
45 |
1.77 |
250 |
3555 |
242 |
9.5 |
0.52 |
1.15 |
B-FD-10, B-CLI-10, B-CL-20,
B-A10, 和B-R10到B-R40 |
ST-66713N
手把启动 |
3.3 |
0.13 |
2.8 |
0.25 |
6.5 |
0.25 |
56 |
2.20 |
280 |
3980 |
268 |
10.5 |
.55 |
1.21 |
B-A30-1, B-AR20-1 |
ST-66714N
手把启动 |
3.3 |
0.13 |
2.8 |
0.25 |
6.5 |
0.25 |
56 |
2.20 |
280 |
3980 |
207 |
8.1 |
0.57 |
1.25 |
B-FD-20, B-CL30, B-CL40,
B-A50, B-AR30-1 到B-AR40-2,
B-A20-1到B-A40-2 |
ST-66715N
手把启动 |
4.8 |
0.19 |
4.0 |
0.25 |
6.5 |
0.25 |
56 |
2.20 |
450 |
6400 |
300 |
11.8 |
0.90 |
1.98 |
B-S50, B-FD20, B-CL30,
B-CL40, B-A50, B-A60,
B-AR30-1到B-AR40-2, B-A20-1
到B-A40-2 |
ST-66716N
遥控启动 |
2.6 |
0.10 |
2.0 |
0.16 |
4 |
0.16 |
45 |
1.77 |
140 |
1990 |
45 |
1.7 |
0.35 |
.77 |
B-FD-10, B-CLI-10, B-CL-20,
B-A10, 和B-R10到B-R40 |
ST-66717N
遥控启动 |
3.3 |
0.13 |
2.8 |
0.25 |
6.5 |
0.25 |
56 |
2.20 |
280 |
3980 |
200 |
7.8 |
0.59 |
1.3 |
B-S50, B-FD20, B-CL30,
B-CL40, B-R30-1到B-R40-2,
B-AR30-1到B-AR40-2 |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
