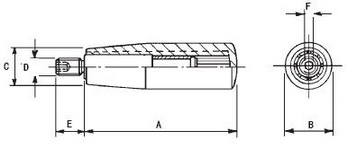

带钢轴的塑料转臂式手柄
ELESA 原设计 |
|
|
- 材料: 抗强冲击型聚合物
- 表面处理: 黑色亚光
- 轴体: 镀锌钢
- 抗溶解, 抗油脂和其他化学介质腐蚀
|
件 号 |
A |
B |
C |
D |
E |
F |
33611 |
1.57 |
.71 |
.59 |
M6 |
.51 |
.12 |
33612 |
1.97 |
.83 |
.67 |
M6 |
.51 |
.12 |
33613 |
2.20 |
.87 |
.71 |
M6 |
.51 |
.12 |
33614 |
2.56 |
.91 |
.75 |
M8 |
.59 |
.16 |
33615 |
3.15 |
1.02 |
.83 |
M8 |
.59 |
.16 |
33616 |
3.54 |
1.10 |
.87 |
M10 |
.67 |
.20 |
|
|

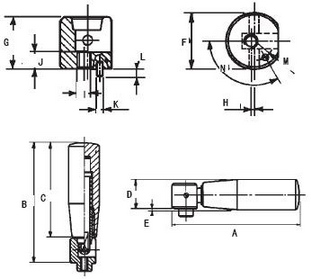

塑料转臂式折叠式手柄
ELESA 原设计 |
 |
 |
- 材料:抗强冲击型聚合物
- 表面处理: 黑色亚光
- 螺栓: 黑色氧化钢, 双导槽
- 抗溶解, 抗油脂和其他化学介质腐蚀
|
件 号 |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
N |
33631 |
2.91 |
2.80 |
2.20 |
.75 |
.10 |
.63 |
.59 |
.04 |
M4 |
.20 |
.12 |
.12 |
.22 |
90° |
33632 |
3.27 |
3.15 |
2.56 |
.79 |
.12 |
.63 |
.59 |
.04 |
M4 |
.20 |
.12 |
.12 |
.22 |
90° |
33633 |
3.50 |
3.35 |
2.56 |
.87 |
.04 |
.79 |
.77 |
.02 |
M6 |
.24 |
.12 |
.12 |
.28 |
120° |
33634 |
4.09 |
3.94 |
3.15 |
.94 |
.10 |
.79 |
.77 |
.02 |
M6 |
.24 |
.12 |
.12 |
.28 |
120° |
33635 |
4.49 |
4.33 |
3.54 |
.94 |
.12 |
.79 |
.77 |
.02 |
M6 |
.24 |
.12 |
.12 |
.28 |
120° |
33636 |
4.65 |
4.45 |
3.54 |
1.06 |
.04 |
1.02 |
.91 |
.06 |
M6 |
.28 |
.12 |
.12 |
.37 |
90° |
|
|
|
| |
|
| |
|
